LADDERS, LIFTS & SCAFFOLDS

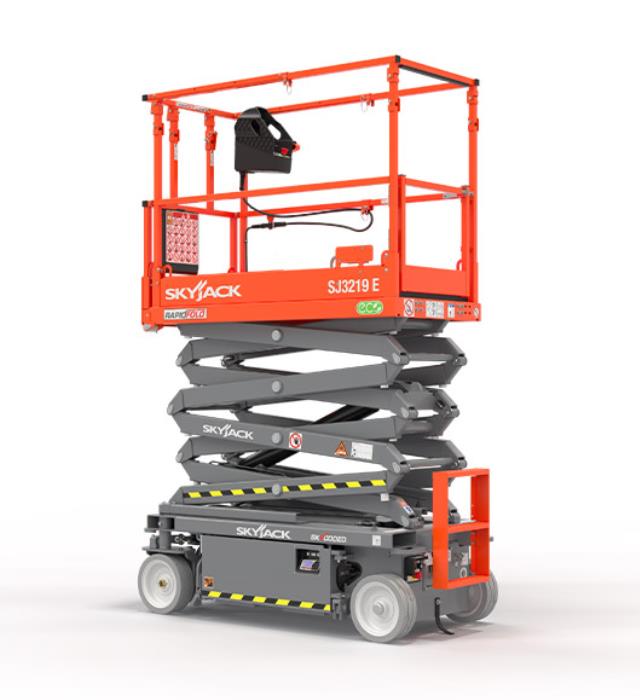

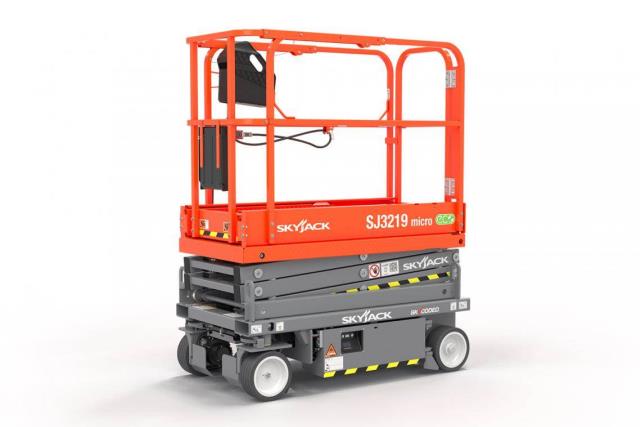

LIFT, SCISSOR 32"X 19'
Image for reference only |
|
4 Hour: $55.00
Daily: $100.00
Weekly: $300.00
Additional Information
- work height: 24 6 (7.47 m)
- Raised Platform Height: 18 6 (5.64 m)
- Lowered Platform Height: 41 (1.04 m)
- Overall Width: 32 (0.81 m)
- Overall Length: 71 (1.80 m)
- Stowed Height (Rails Up): 84 (2.13 m)
- Stowed Height (Rails Down): 79.6 (2.01 m)
- Platform Width (Inside Dimension): 26 (0.66 m)
- Platform Length (Inside Dimension): 61 (1.55 m)
- Extension Deck (Roll Out): 3 (0.91 m)
- Ground Clearance: 0.5 (1.3 cm)
- CAN ONLY BE USED ON HARD SURFACES
- Ground Clearance (raised): 3.5 (8.9 cm)
- Wheelbase: 54 (1.37 m)
- Weight: 3,236 lbs (1,468 kg)
- Gradeability: 25%
- Turning Radius (Inside): 0
- Turning Radius (Outside): 65 (1.65 m)
- Lift Time (With Rated Load): 22 sec
- Lower Time (With Rated Load): 25 sec
- Drive Speed (Stowed): 2.1 mph (3.4 km/h)
- Drive Speed (Raised): 0.6 mph (0.9 km/h)
- Maximum Drive Height: Full Height
- Capacity (Overall): 500 lbs (227 kg)
- Distributed Capacity (Main Platform): 250 lbs (113 kg)
- Distributed Capacity (Extension Deck):250 lbs (113 kg)
- Local Floor Load (With Rated Load): 168 psi (1,159 kPa)
- Overall Floor Load (With Rated Load): 242 psf (11.6 kPa)
- Maximum # of Persons: 2
- Wind Rating: 1 @ 28 mph (12.5 m/s)
- Tire Type: Solid
- Tire Size: 12 x 4 x 8
- WE HAVE ONE GENI, THE REST IS SKY JAX
- TRAILER RENTAL IS $20.00 PER DAY
- DAMAGE WAIVER IS OPTIONAL
Also check the following item(s) related to the above:
Prices subject to change without notice.
* Please call us with any questions you may have about our lift scissor 32 inch x 19 foot rentals in Helena MT
